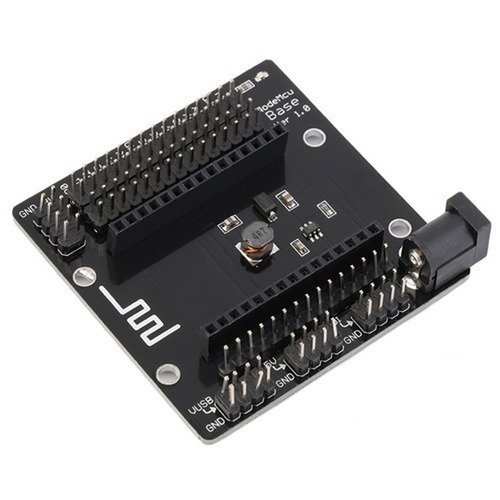

NodeMCU ESP8266 Expansion Base Board

NodeMCU ESP8266 Expansion Base Board

Overview:

• Designed specifically for the Lua V3 NodeMCU ESP8266 ESP-12E development board.
• Acts as a breakout board, making it easier to connect peripherals and access all I/O pins.

Key Features:

• Breaks out all I/O ports of the ESP-12E.
• Provides access to 5V and 3.3V power supply pins.
• Onboard 5V / 1A DC-DC step-down converter.
• Includes a DC power jack (input voltage: 6V to 24V).
• Onboard power indicator LED.
• USB power output (only for NodeMCU V3).
• Compact and handy design with 25.5mm spacing between mounting headers.

Programming Support:

• Uses Lua scripting language, allowing Arduino-like hardware control for developers.

Dimensions & Weight:

• Length: 64 mm
• Width: 60 mm
• Height: 14 mm
• Weight: 20 g
• Shipment Dimensions: 7 × 8 × 2.5 cm
• Shipment Weight: 22 g

Package Includes:

• 1 x NodeMCU ESP8266 Expansion Base Board
